Enable Setup Mode of TM30III Printer

Steps to Enter Setup Mode – TM-30III Printer

1. Enter Setup Mode

1. Open the printer cover
   – The orange exclamation mark light will start blinking.

2. Press the Feed button once
   – Press and release quickly.

3. Close the printer cover

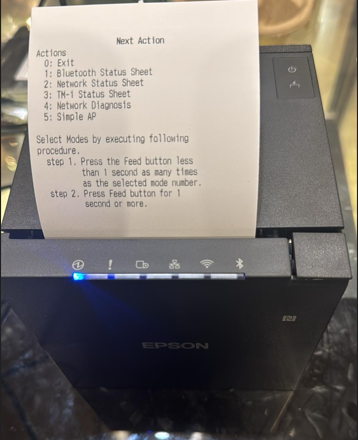

   – The printer will print a status sheet showing “Enter Setup Mode”.

2. Enter Simple AP Setting (Simple Access Point Mode)

1. Press the Feed button 5 times quickly
   – Each press should be less than 1 second.

2. On the 6th press, hold the Feed button
   – This must be a long press.

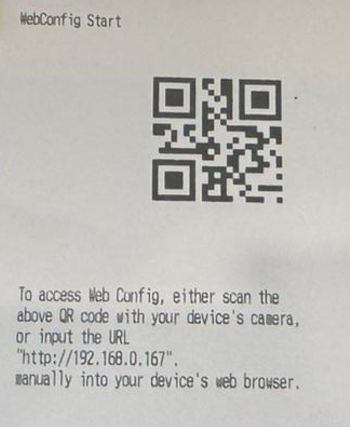

3. The printer will print a Simple AP QR Code
   – Scan the QR code to connect to the printer’s Wi-Fi.

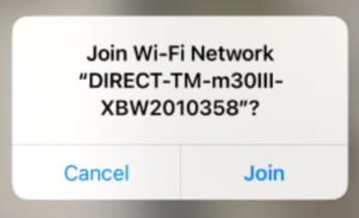

   – The printer will broadcast its own Wi-Fi network, which you need to join using your mobile device.
